CX540D-24 Tohtsu SPDT Coaxial RF Relay 24VDC 1GHz
CX540D-24 Tohtsu SPDT Coaxial RF Relay 24VDC 1GHz
CX540D-24 Tohtsu SPDT Coaxial RF Relay 24VDC 1GHz
CX540D-24 Tohtsu SPDT Coaxial RF Relay 24VDC 1GHz
CX540D-24 Tohtsu SPDT Coaxial RF Relay 24VDC 1GHz

CX540D-24 Tohtsu SPDT Coaxial RF Relay 24VDC 1GHz

REFERENCE 84418.T7. In stock 10 Items Brand TOHTSU
Condition Brand New
Country/Region of Manufacture Japan
Voltage 12V DC
Frequency 0-2000 MHZ
Connector A BNC (F)
Connector B BNC (F)
Power 150-350 W
Switch Contact Form SPDT
Life Expectancy 1000000
€120.00
Tax excluded
Quantity
Ships in 1-2 business days
Add to Cart
Buy Now

High-quality Tohtsu CX540D 24VDC SPDT coaxial relay switch, ideal for RF applications up to 1 GHz. Known for its low insertion loss, high isolation, and long switching life, it’s perfect for RF testing, transceivers, and communications systems.

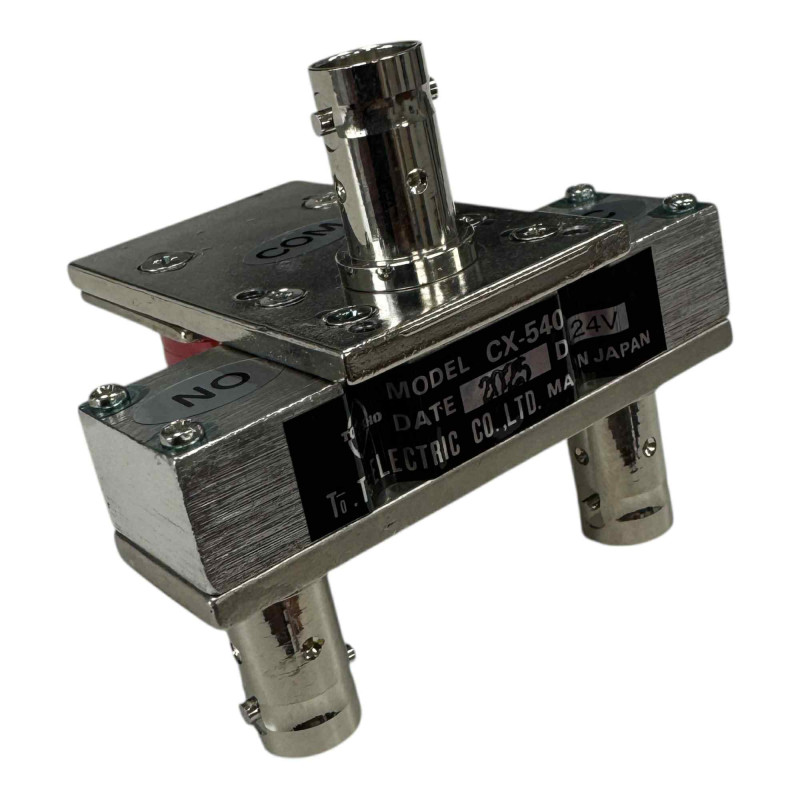

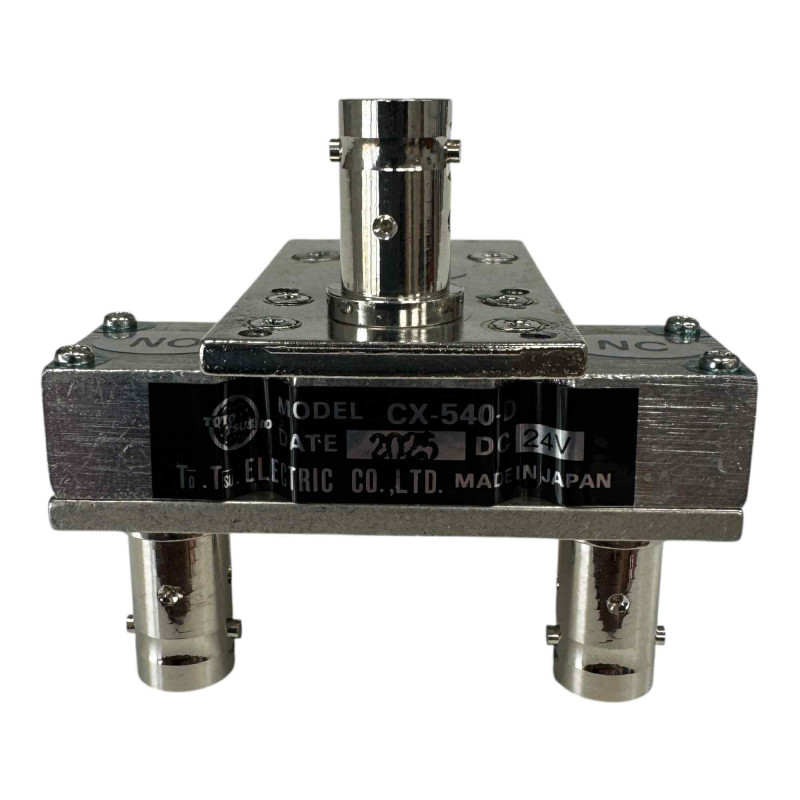

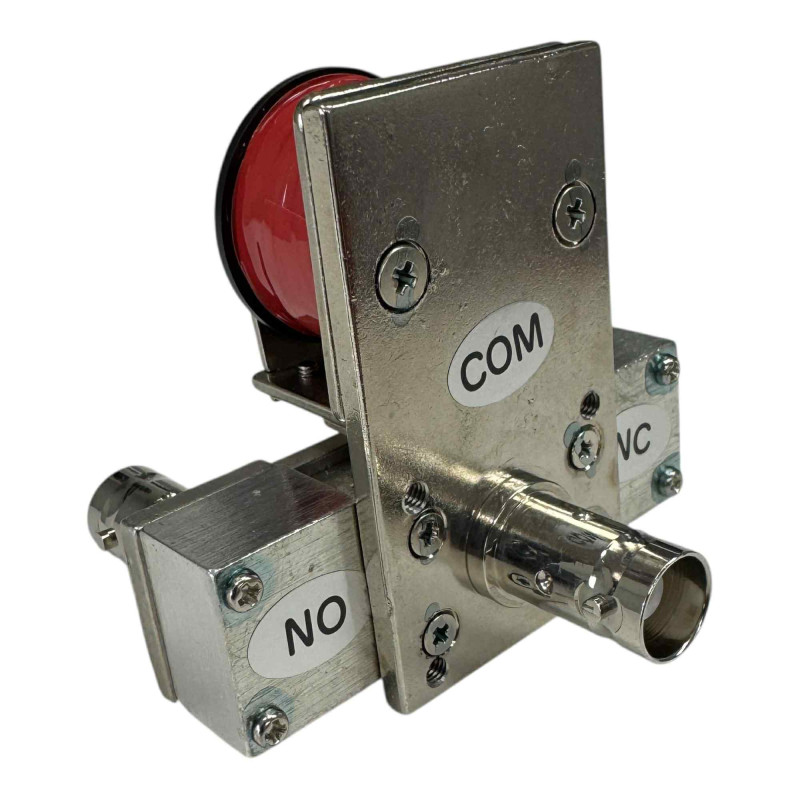

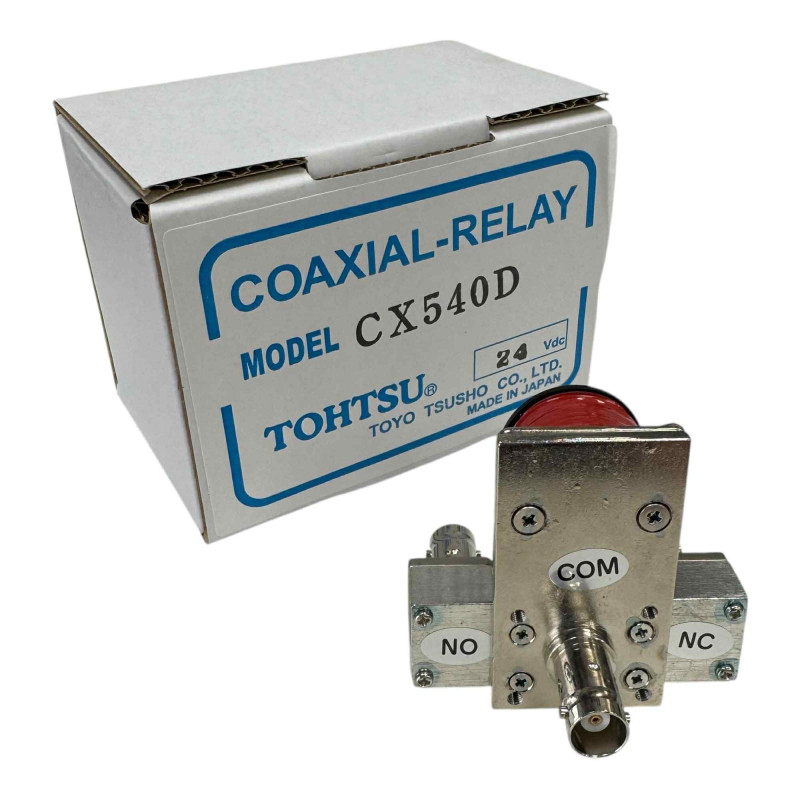

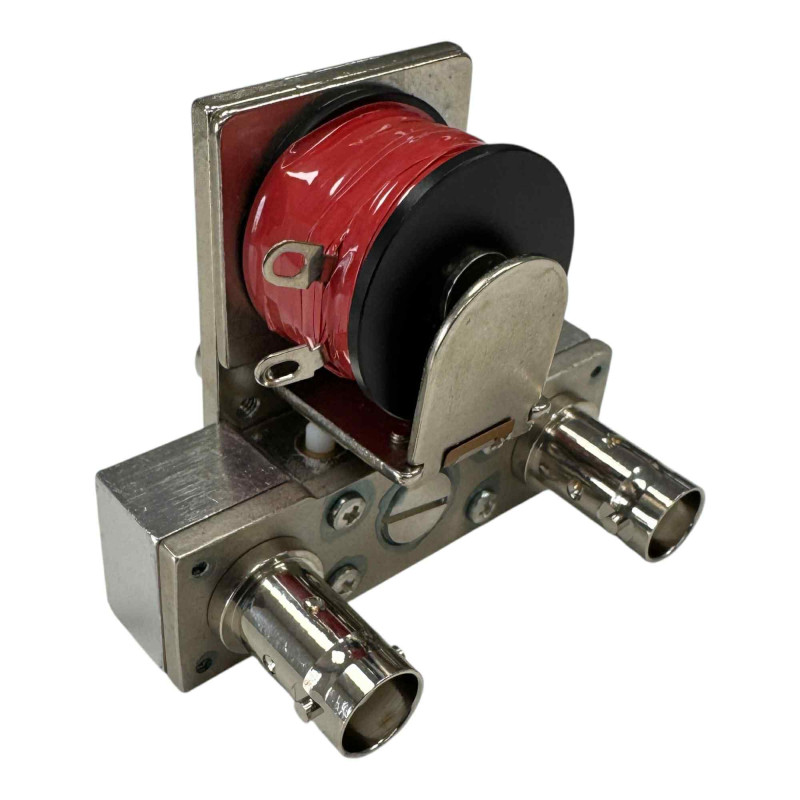

The Tohtsu CX540D is a precision SPDT (Single Pole Double Throw) coaxial relay designed for high-reliability RF switching. Operating at 24 VDC, it offers excellent RF performance across the DC–1 GHz frequency range. Compact, rugged, and dependable, this relay is widely used in RF amplifiers, test instruments, and communications systems.

Specifications

  • Manufacturer: Tohtsu

  • Model: CX540D / CX540D-24VDC

  • Type: SPDT Coaxial RF Relay

  • Operating Voltage: 24 VDC

  • Frequency Range: DC–1 GHz

  • Insertion Loss: Low

  • Isolation: High

  • Impedance: 50 Ω

  • Mounting: Coaxial connectors (typically N-type or SMA, depending on version)

Applications

  • RF Switching Systems

  • Transceivers & Amplifiers

  • Test Equipment

  • Communication and Measurement Systems
