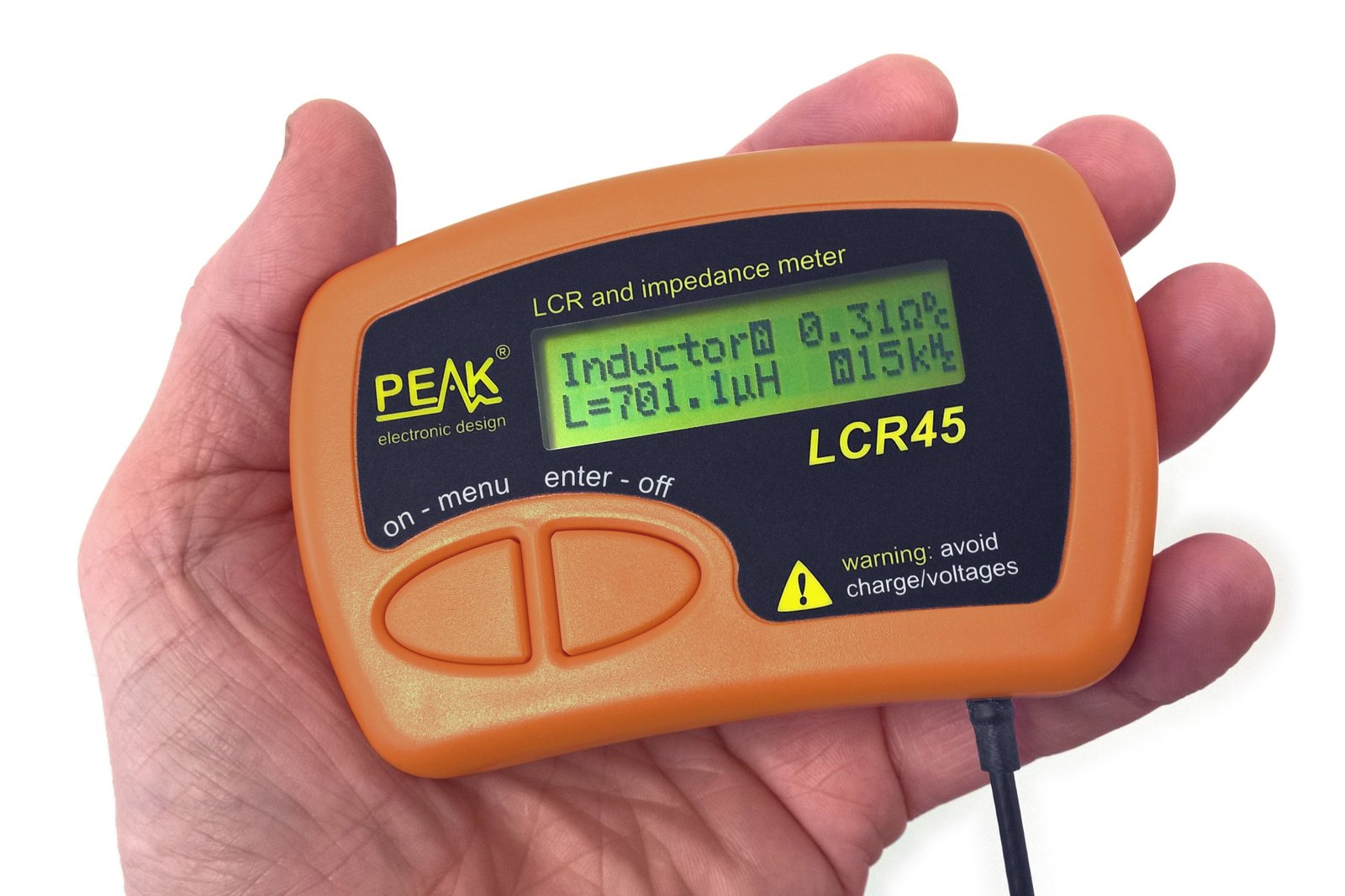

LCR45 Atlas Passive Component Impedance Analyser (Model LCR45) PEAK ELECTRONICS
| Condition | Brand New |
|---|---|
| Country/Region of Manufacture | United Kingdom |

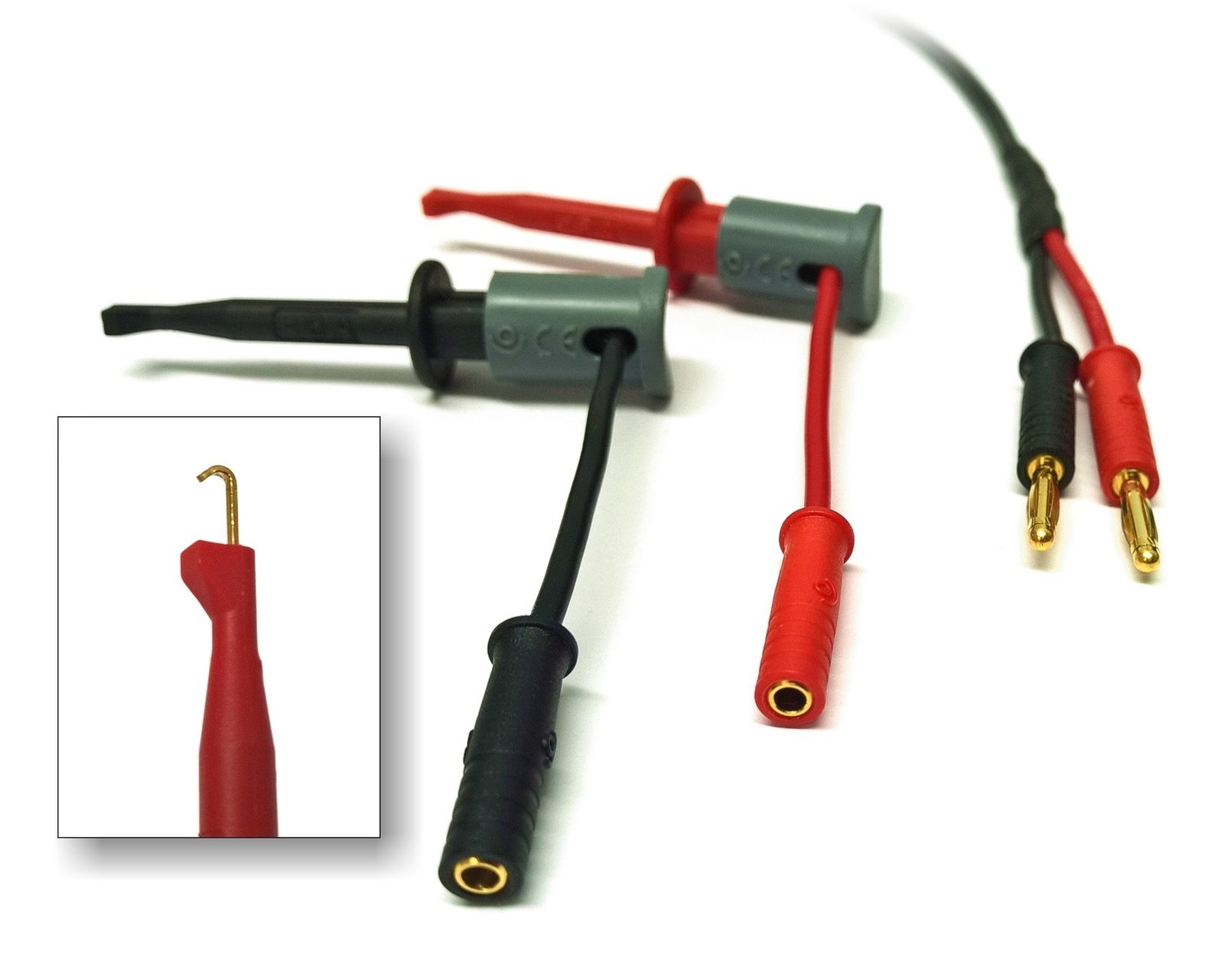

| A great handheld LCR analyser that can measure the value of your passive component (inductor, capacitor or resistor) and also measure the detailed impedance in a number of modes. The LCR45 offers enhanced measurement resolution (better than 0.1uH!) whilst also giving you continuous fluid measurements. Additionally, the test frequencies of DC, 1kHz, 15kHz and 200kHz can be set to automatic or manual modes. Supplied with removable gold plated hook probes, battery and user guide. Compatible with standard 2mm test connectors. Not designed for in-circuit use.
Key Features
|
|
Parameter
|
Min
|
Typ
|
Max
|
Note
|
|
|
Resistance |
range |
0Ω |
|
2MΩ |
|
|
resolution |
0.1Ω |
0.2Ω |
|
|
|
|
accuracy |
Typically ±1.0% ±0.6Ω |
1,2,6 |
|||
|
Capacitance |
range |
0pF |
|
10000µF |
|
|
resolution |
0.1pF |
0.2pF |
|
|
|
|
accuracy |
Typically ±1.5% ±0.6pF |
1,2,5 |
|||
|
Inductance |
range |
0µH |
|
10H |
|
|
resolution |
0.1µH |
0.2µH |
|
|
|
|
accuracy |
Typically ±1.5% ±0.6µH |
1,2,4 |
|||
|
Passive Component Impedance |
Re & Im |
Typically ±1.5% ±10 LSD |
4,5,6 |
||
|
Magnitude |
Typically ±1.5% ±10 LSD |
4,5,6 |
|||
|
Phase |
Typically ±5° |
4,5,6 |
|||
|
Measurement Sample Rate |
0.5Hz |
1.5Hz |
2Hz |
|
|
|
Peak test voltage (across O/C) |
-1.05V |
|
+1.05V |
|
|
|
Peak test current (thru S/C) |
-3.25mA |
|
+3.25mA |
|
|
|
Test frequency accuracy |
1kHz |
Typically ±0.5% |
|
||
|
14.9254kHz |
7 |
||||
|
200kHz |
|
||||
|
Sine purity |
Typically -60dB 3rd harmonic |
|
|||
|
Operating temperature range |
10°C |
|
40°C |
3 |
|
|
Battery operating voltage |
8.5V |
|
13V |
|
|
Notes for table above:
1. Within 12 months of factory calibration. Please contact us if you require a full re-calibration and/or certification of traceable calibration.
2. Specified at temperatures between 15°C and 30°C.
3. Subject to acceptable LCD visibility.
4. For inductances between 100µH and 100mH in fully auto mode.
5. For capacitances between 200pF and 500nF in fully auto mode.
6. For resistances between 10Ω and 1MΩ in fully auto mode.
7. For clarity, the 14.9254kHz test frequency is shown as 15kHz.
| Dimensions per product (excluding leads) | 103 x 70 x 20 mm (4.1" x 2.8" x 0.8") | ||||
| Dimensions per product (packaged) | 200 x 138 x 30 mm (7.9" x 5.4" x 1.2") | ||||
| Weight per product (nett) | 0.098kg (3.5oz) | ||||
| Weight per product (packaged inc docs) | 0.161kg (5.7oz) | ||||
| Bulk order multiple | 20, 80 | ||||
| Harmonisation / Commodity / Tariff Code | 9030 3399 20 GB | ||||
| Fundamental Materials | Plastic, glass and metal. | ||||
| Country of manufacture | England (UK) | ||||
| Certification | CE, WEEE, ROHS | ||||
