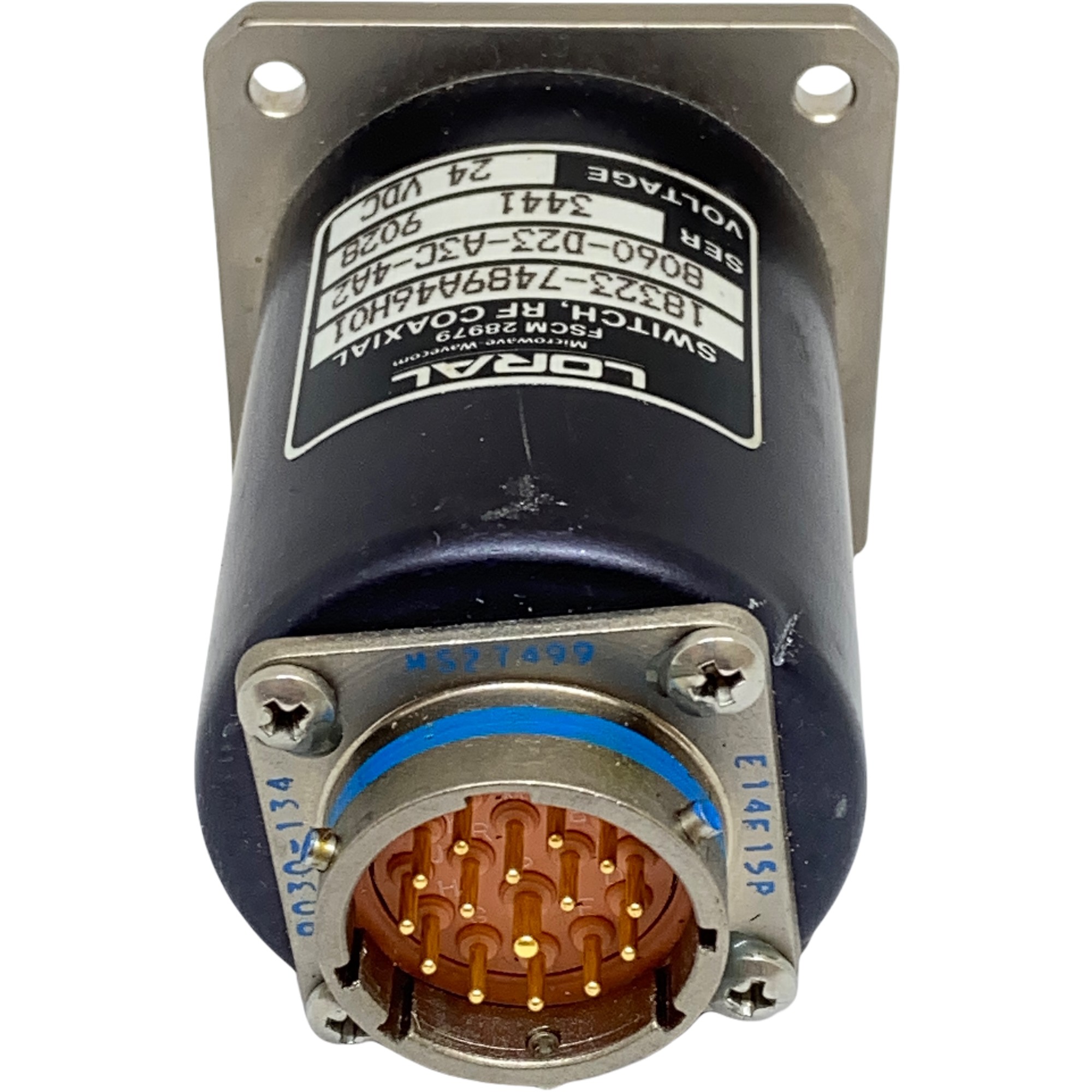

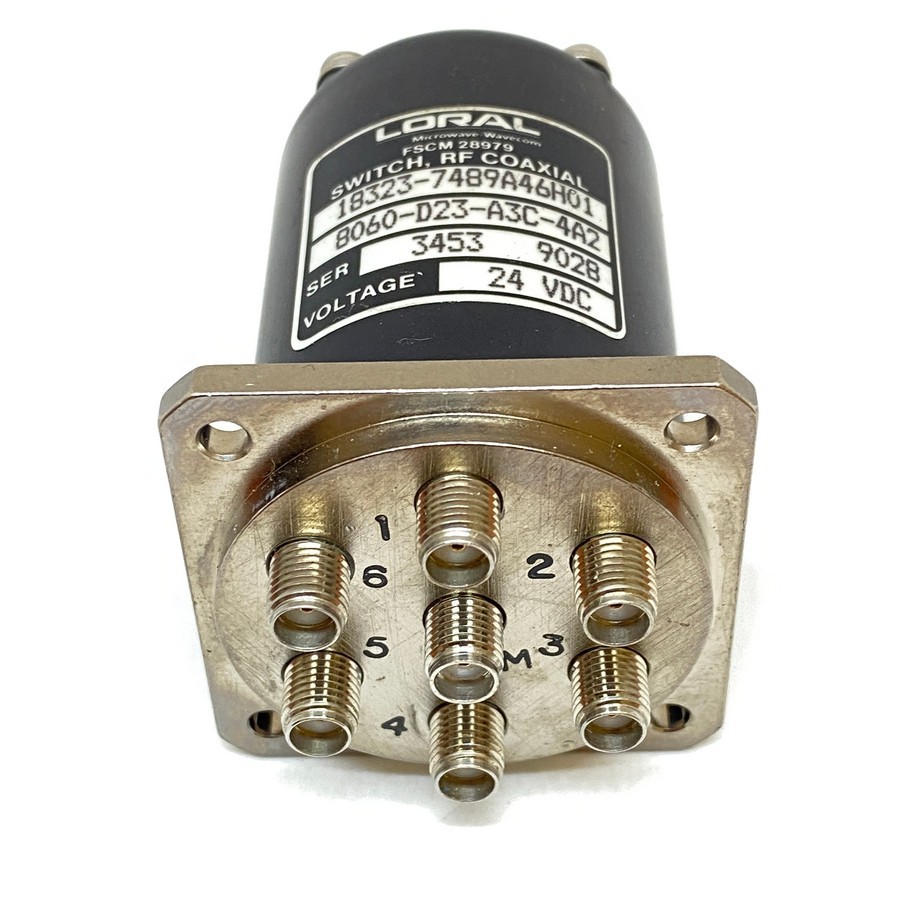

SP6T DC-18GHZ SMA 24VDC COAXIAL SWITCH 18323-7489A46H01 LORAL
SP6T DC-18GHZ SMA 24VDC COAXIAL SWITCH 18323-7489A46H01 LORAL
SP6T DC-18GHZ SMA 24VDC COAXIAL SWITCH 18323-7489A46H01 LORAL
SP6T DC-18GHZ SMA 24VDC COAXIAL SWITCH 18323-7489A46H01 LORAL

SP6T DC-18GHZ SMA 24VDC COAXIAL SWITCH 18323-7489A46H01 LORAL

REFERENCE 41375.R35.B861 In stock 25 Items Brand Loral Microwave
Condition Used
€141.13
Tax excluded
Quantity
Ships in 1-2 business days
Add to Cart
Buy Now
  • SP6T
  • 50Ohm
  • DC-18Ghz
  • SMA (f)
  • 24VDC
  • Power Connector: MS27474E14F15P mates with MS27473T14B15S & Similar
  • Normally Open Failsafe, All ports are normally open, as soon as a 24VDC is applied the contact closes.

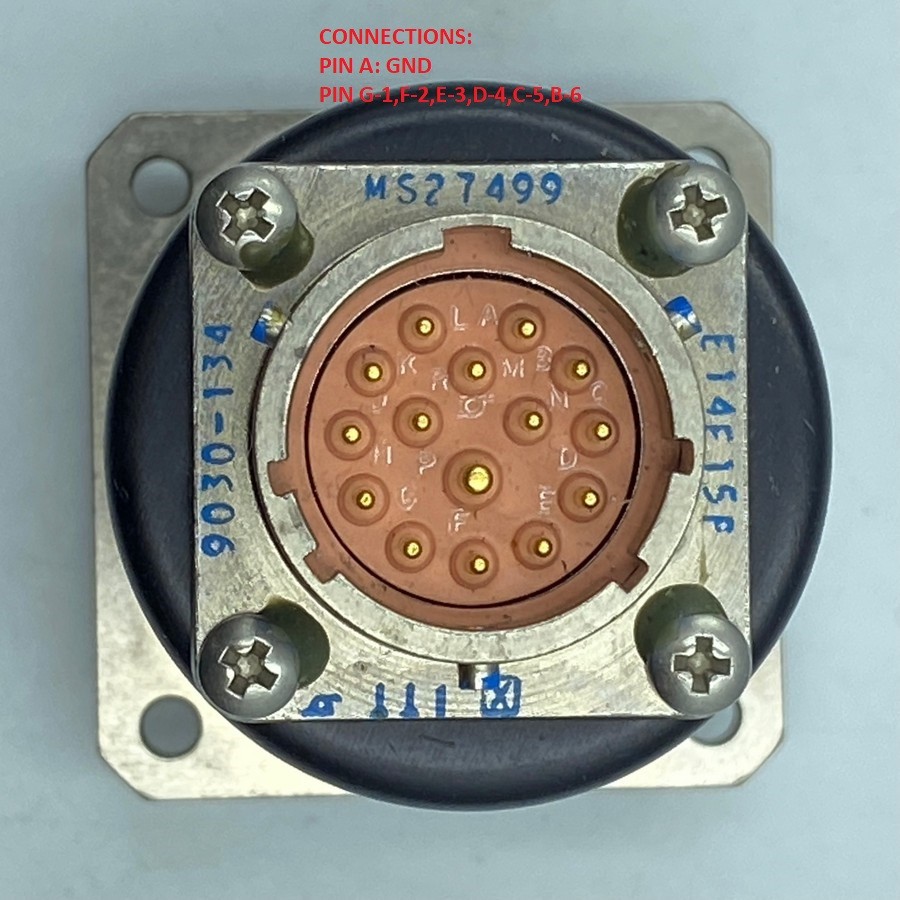

  • Connections, PIN A - GND, PIN G - PORT 1, PIN F - PORT 2, PIN E - PORT 3, PIN D - PORT 4, PIN C PORT 5, PIN B PORT 6
